Project 01 of 07
16 to 26 June 2025
Bearingless
inertia car
2025 Spring Engineering Training
Supervisor Lily Chu
Team 01: Md Zakir Hossen, Md Ikbal Hasan and me
*
Turning
*
CNC milling
*
SolidWorks
*
FDM printing
We built a small car with no bearings and raced it on 26 June 2025. It travelled 945 cm and finished first among 11 teams.
+
01
945 cm
travelled on race day
+
02
1st of 11
teams
+
03
380 g
total mass
+
04
43.0 g
equivalent rotating mass
What
I did
01
Modelled the parts in SolidWorks.
02
Printed the blue PLA brackets on a Soon FDM printer.
03
Machined 5A02 aluminium axles that turn on four M10 pivot bolts.
04
Fitted POM wheels.
05
Cut a 150 by 110 mm acrylic plate on a CNC mill from a Mastercam program.
06
Checked the cutting data of program O0100 in the report and modelled the rotating mass.
+ Honest result
What the report checks
The report checks the cutting data of program O0100 and models the rotating mass of the car, with an equivalent mass of 43.0 g.
From the
report

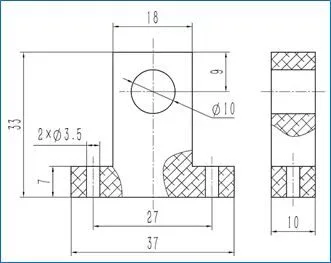

Bracket drawing, dimensions in mm

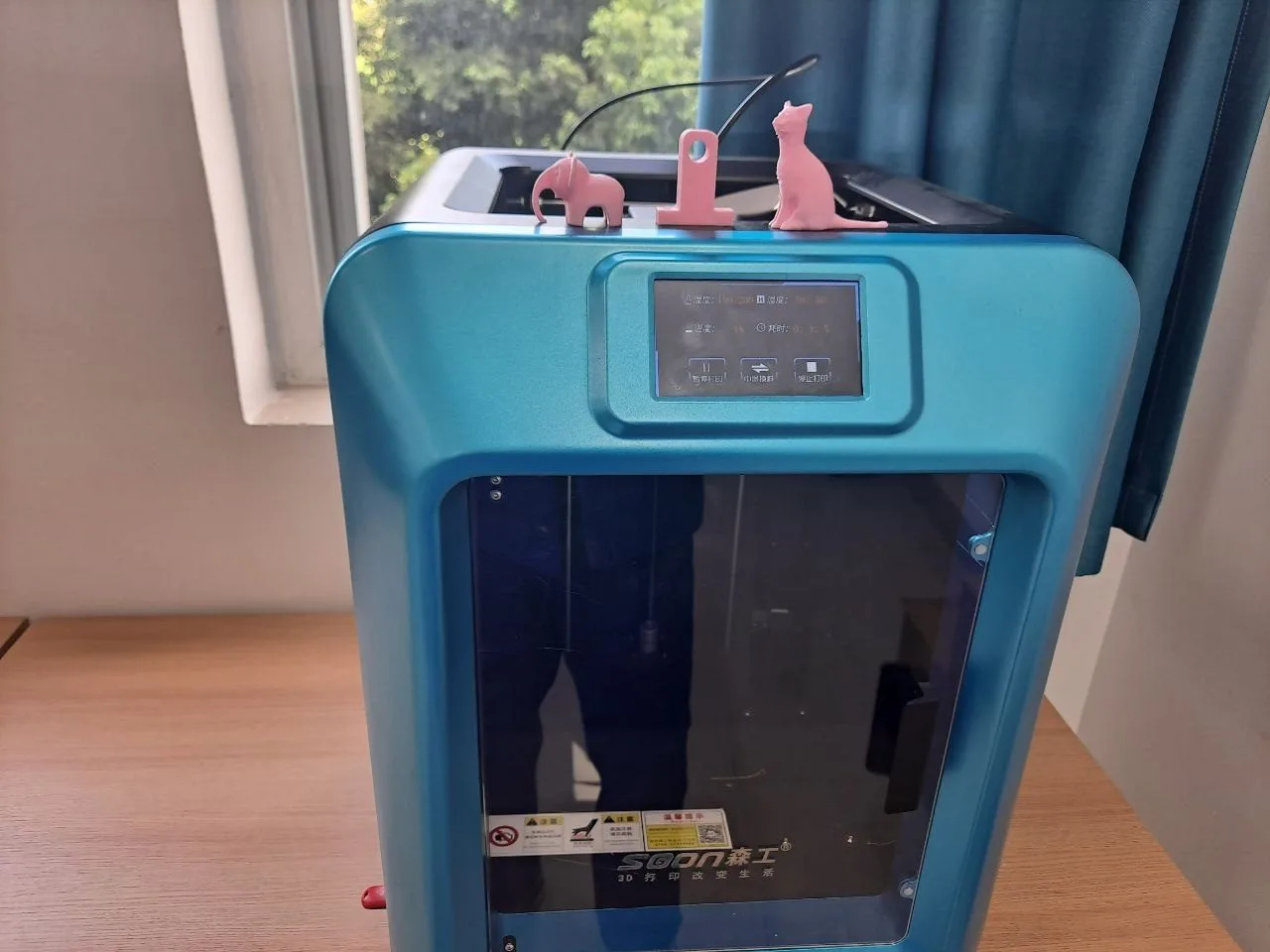

The Soon FDM printer

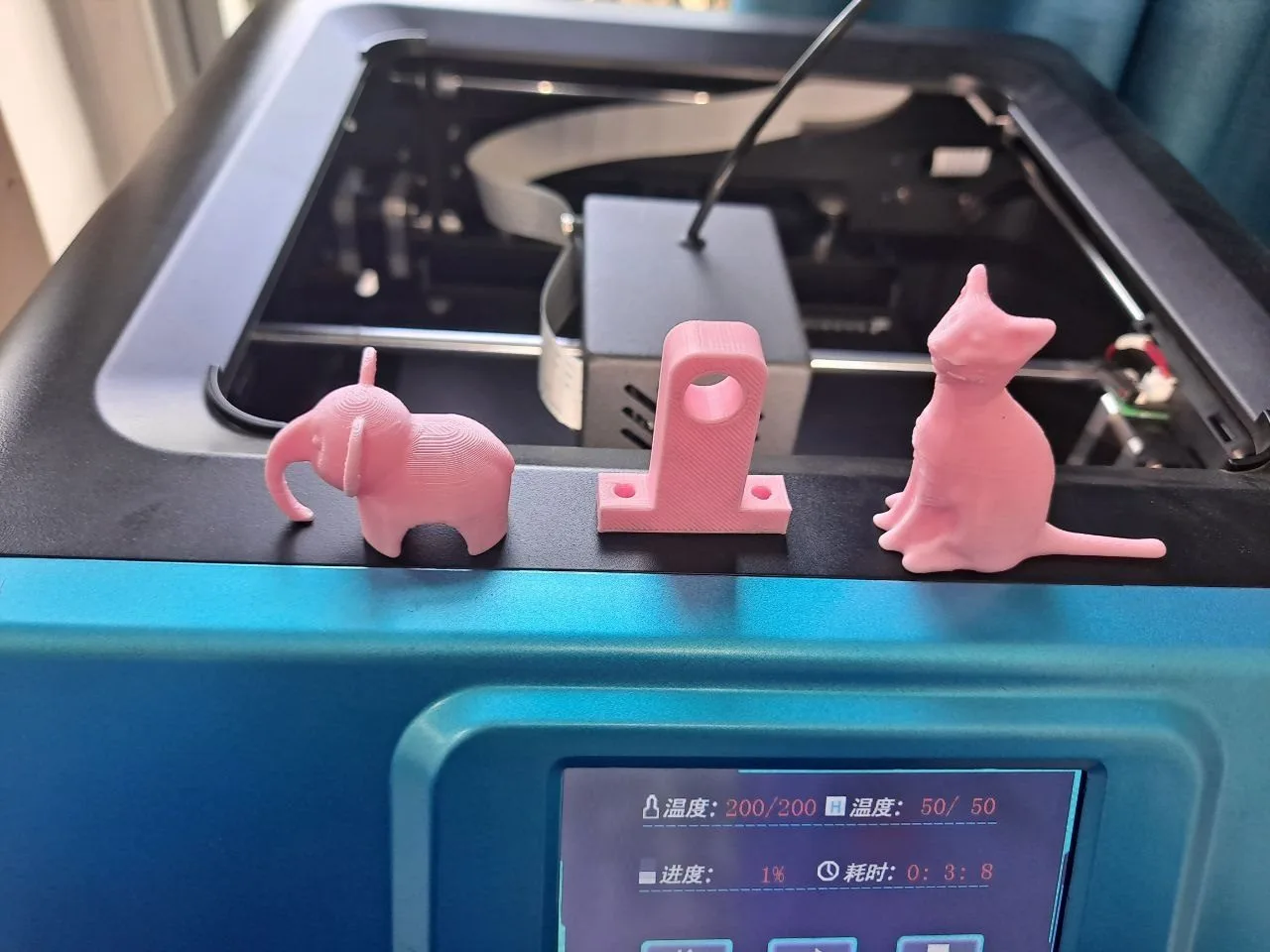

Printed test parts, the bracket in the middle

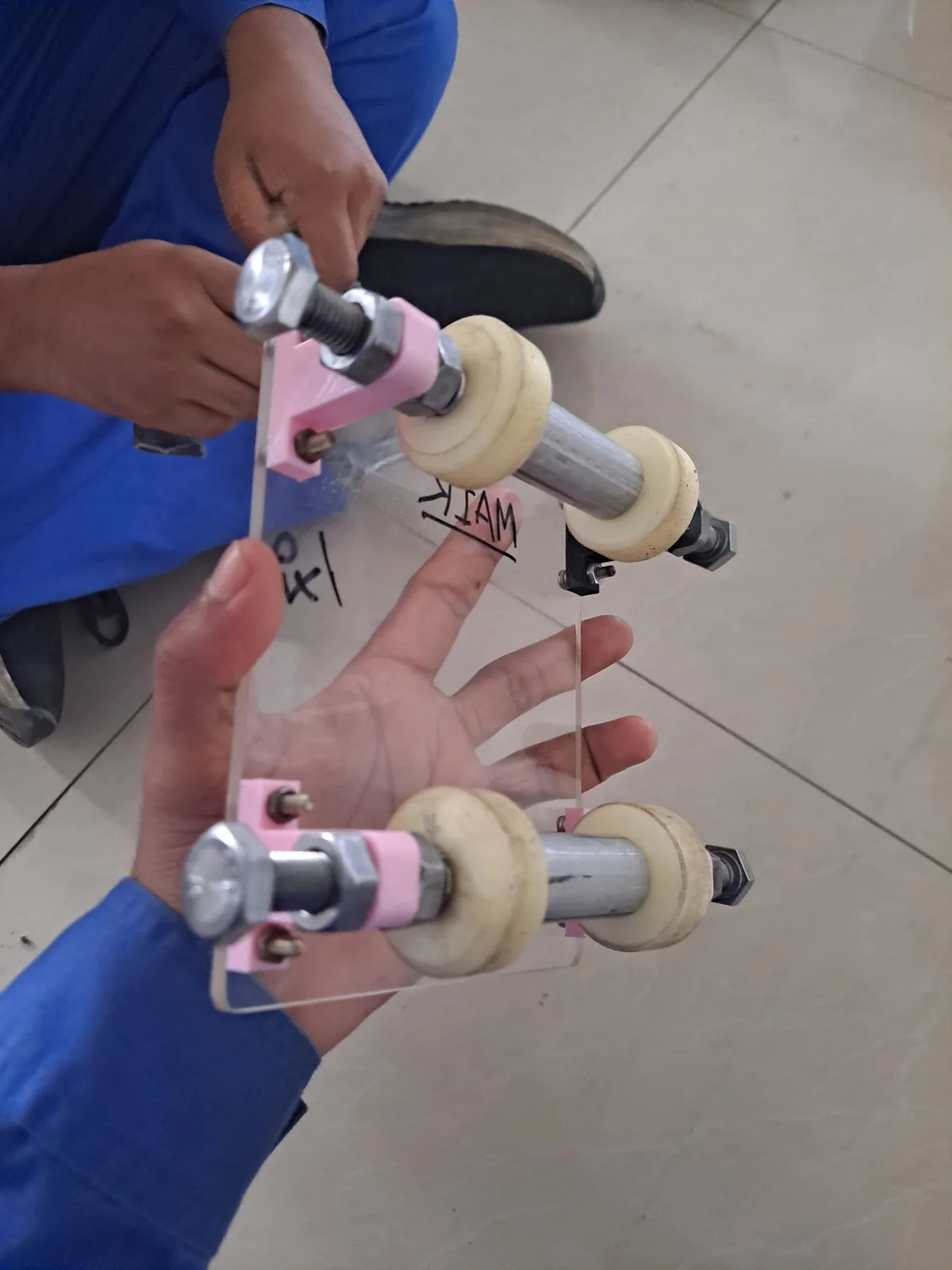

Wheel and axle assemblies
Bench work on the assembly
Milling practice

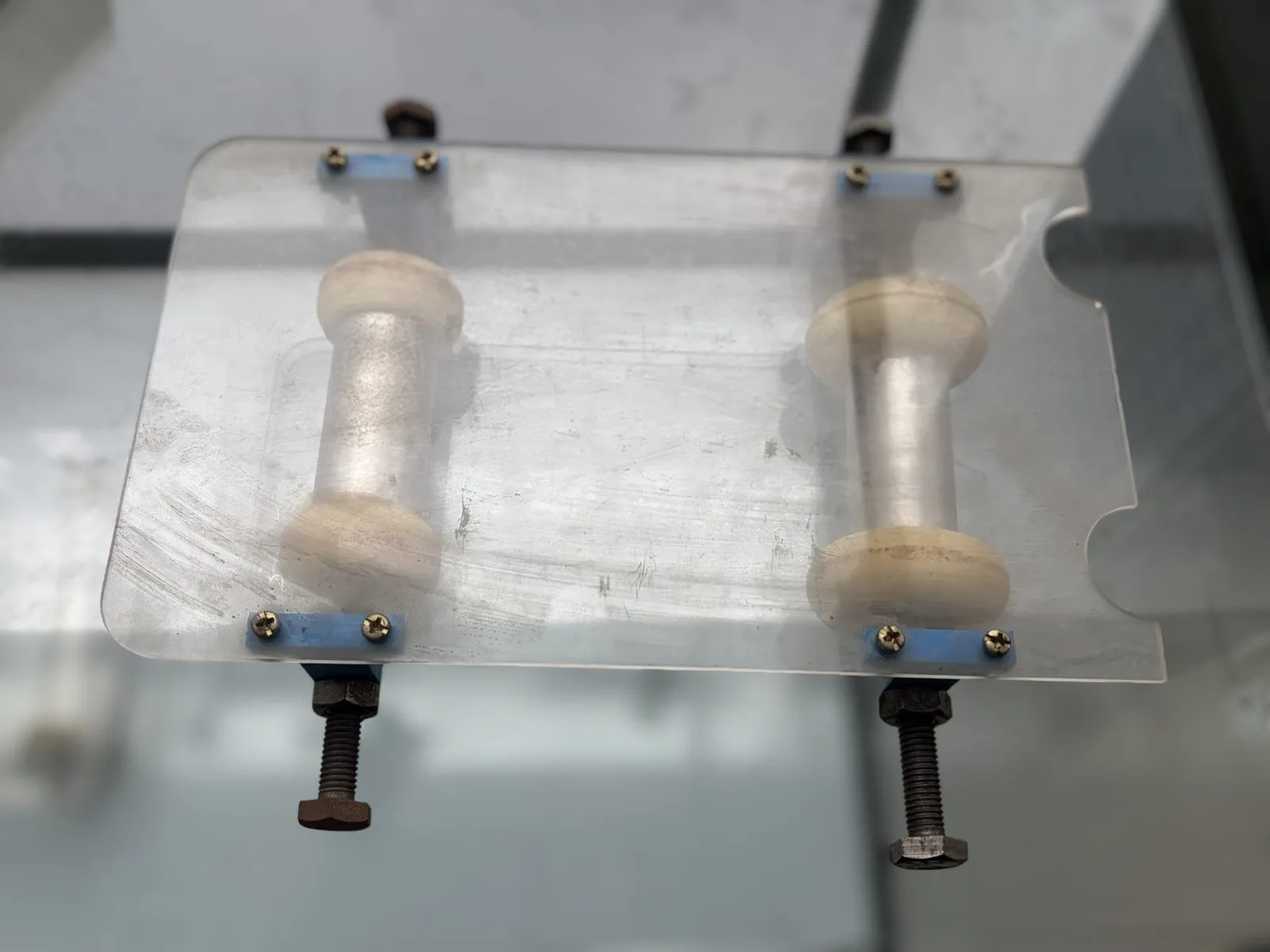

Top view

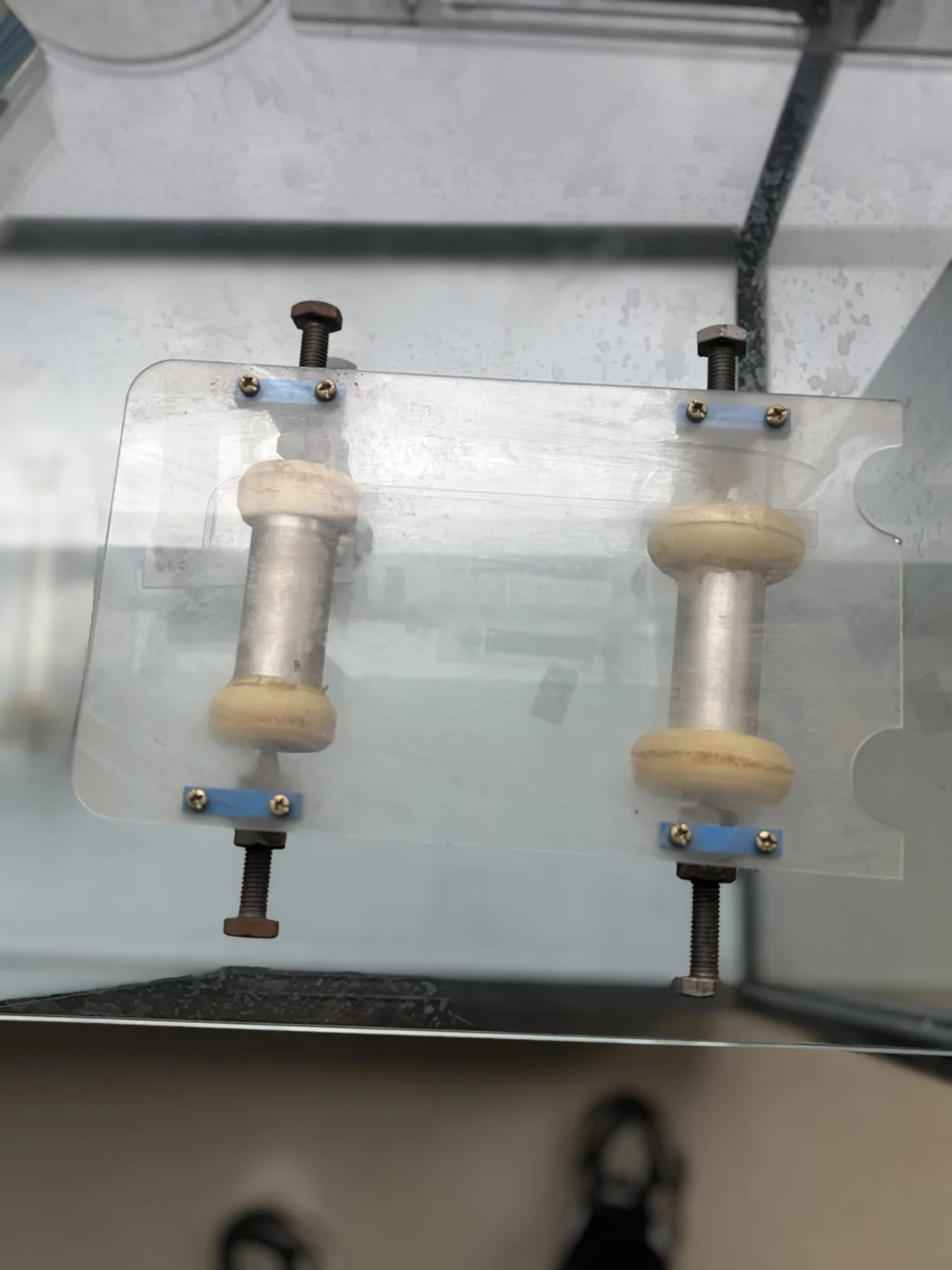

Top view axles

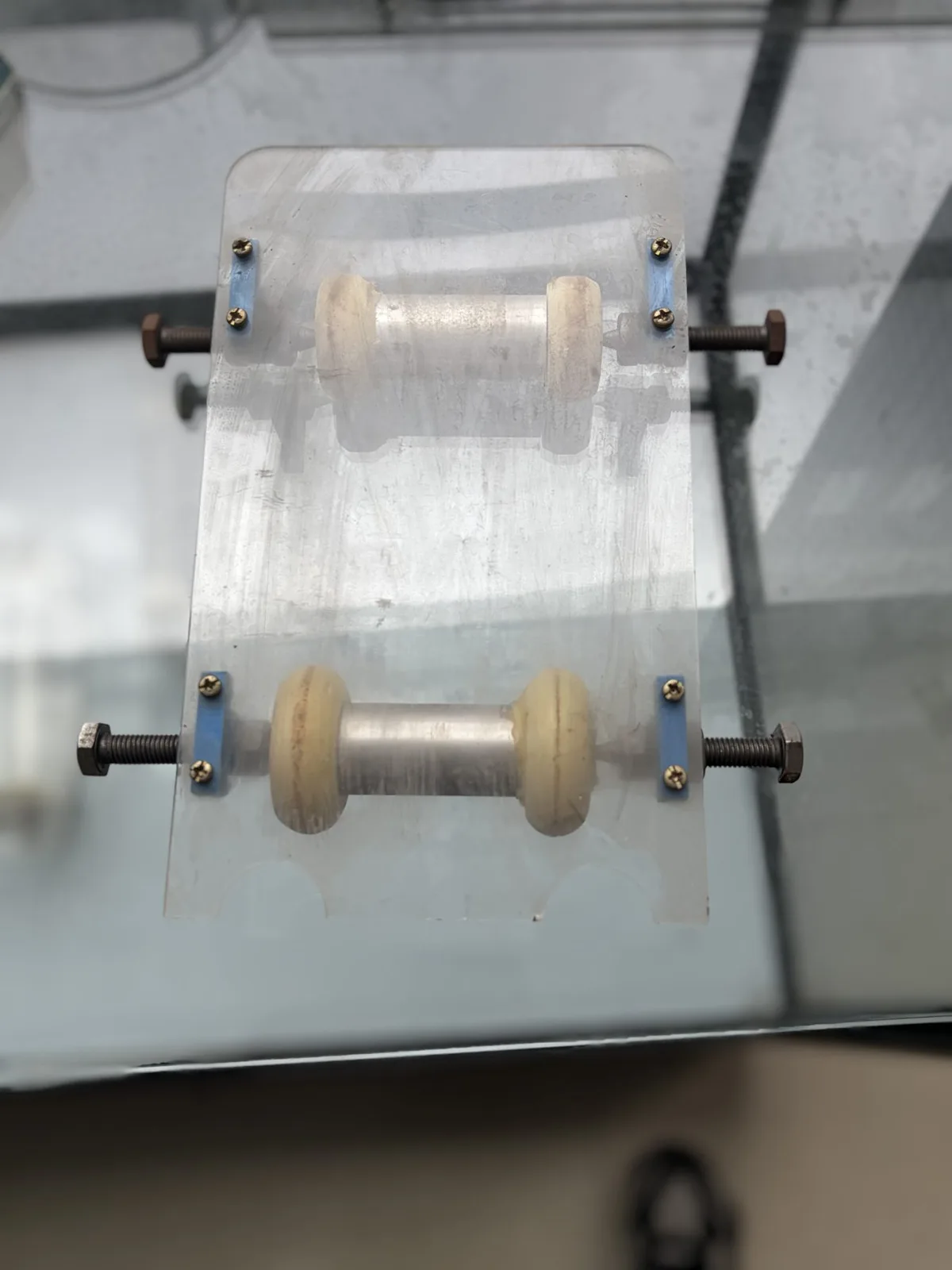

Top view angled

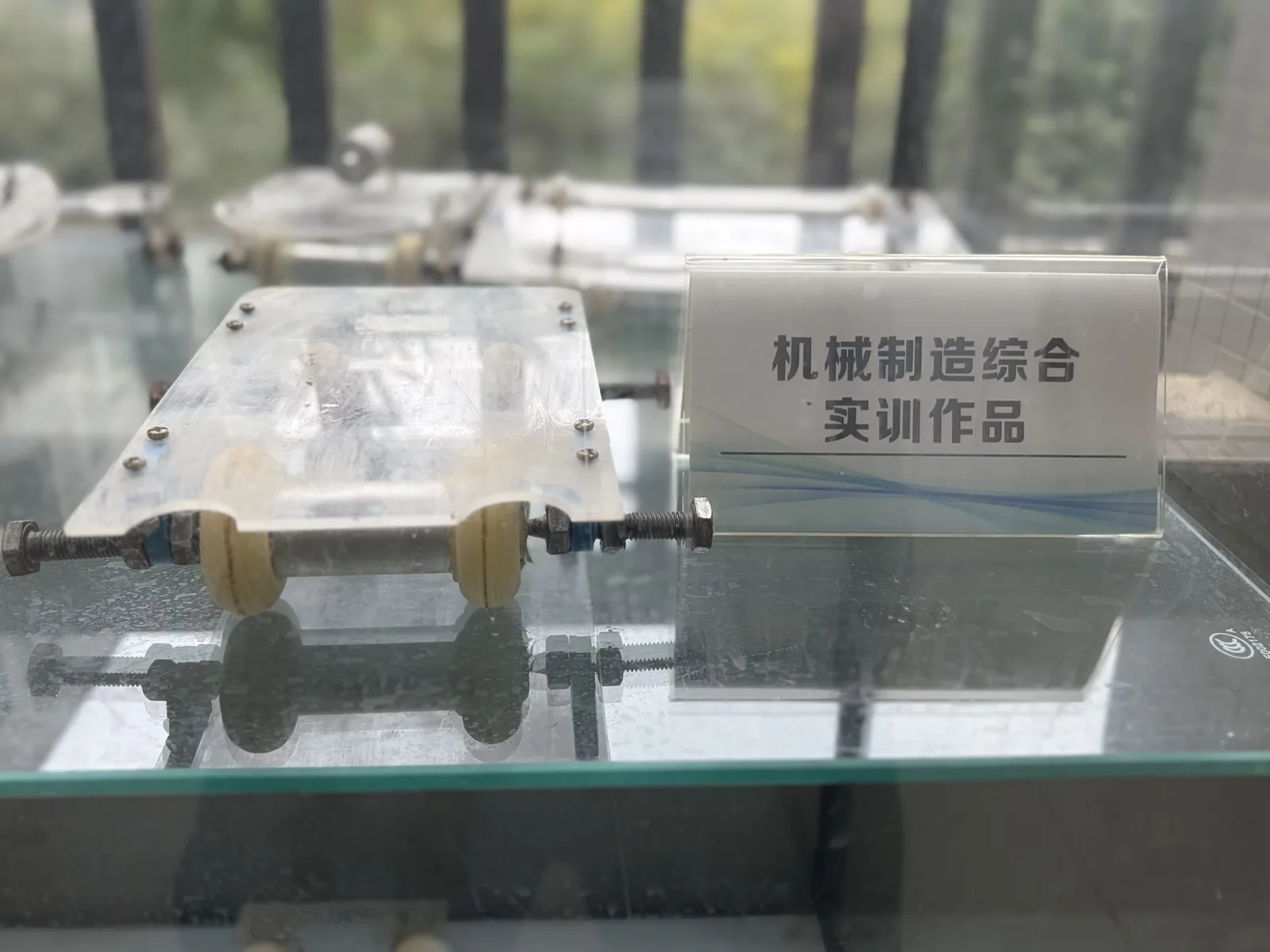

On display shelf

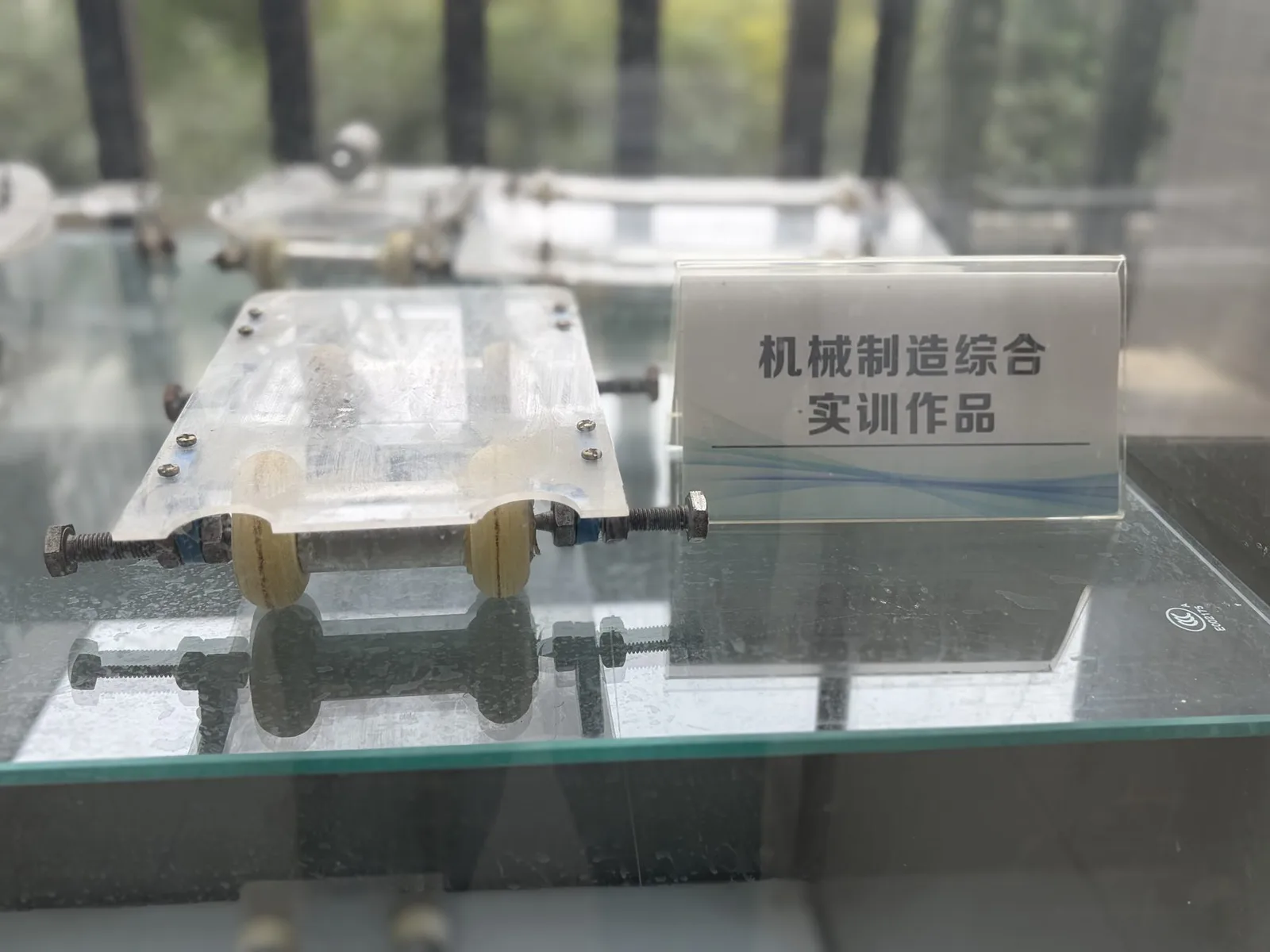

Display shelf close

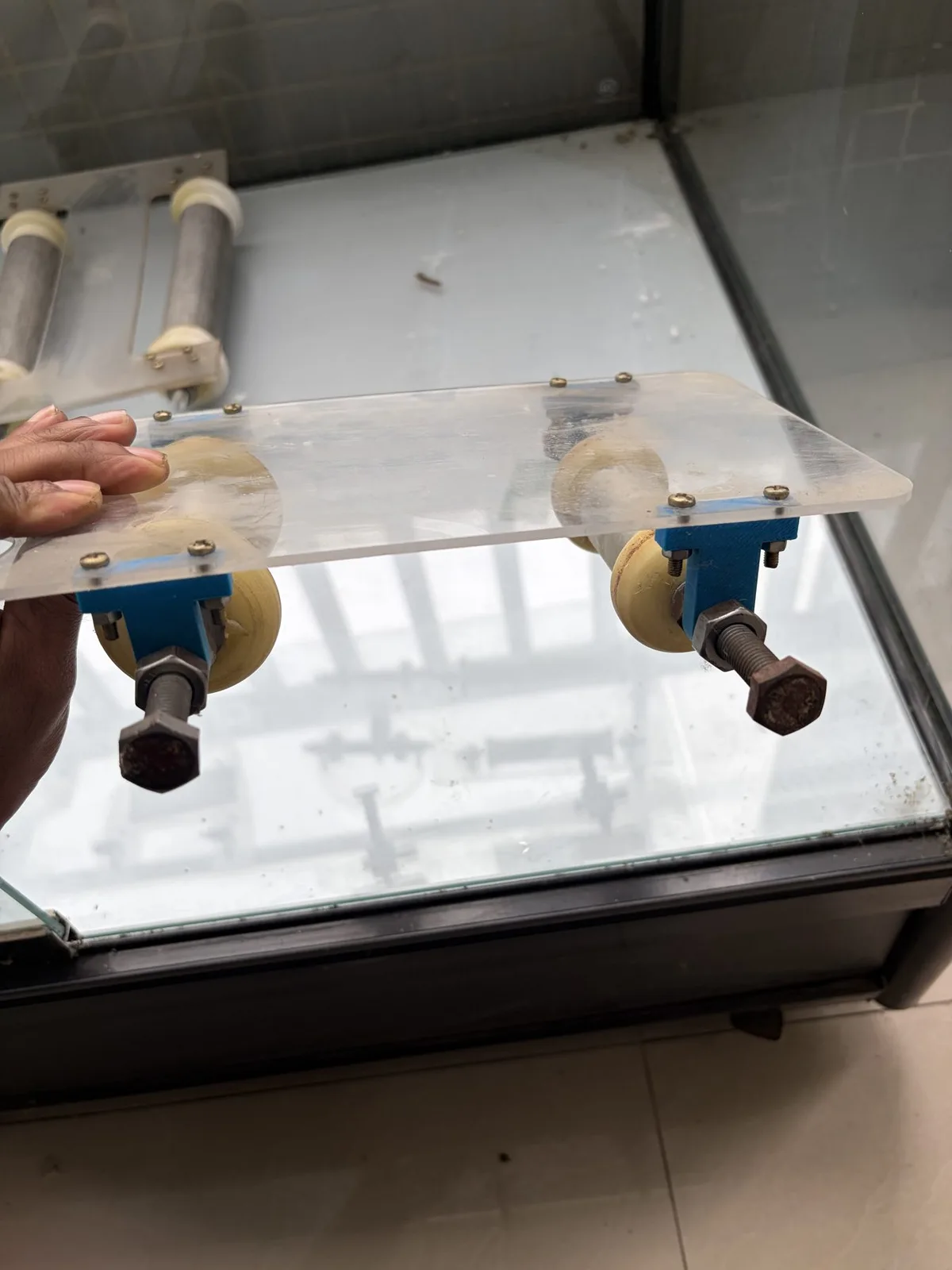

In hand front

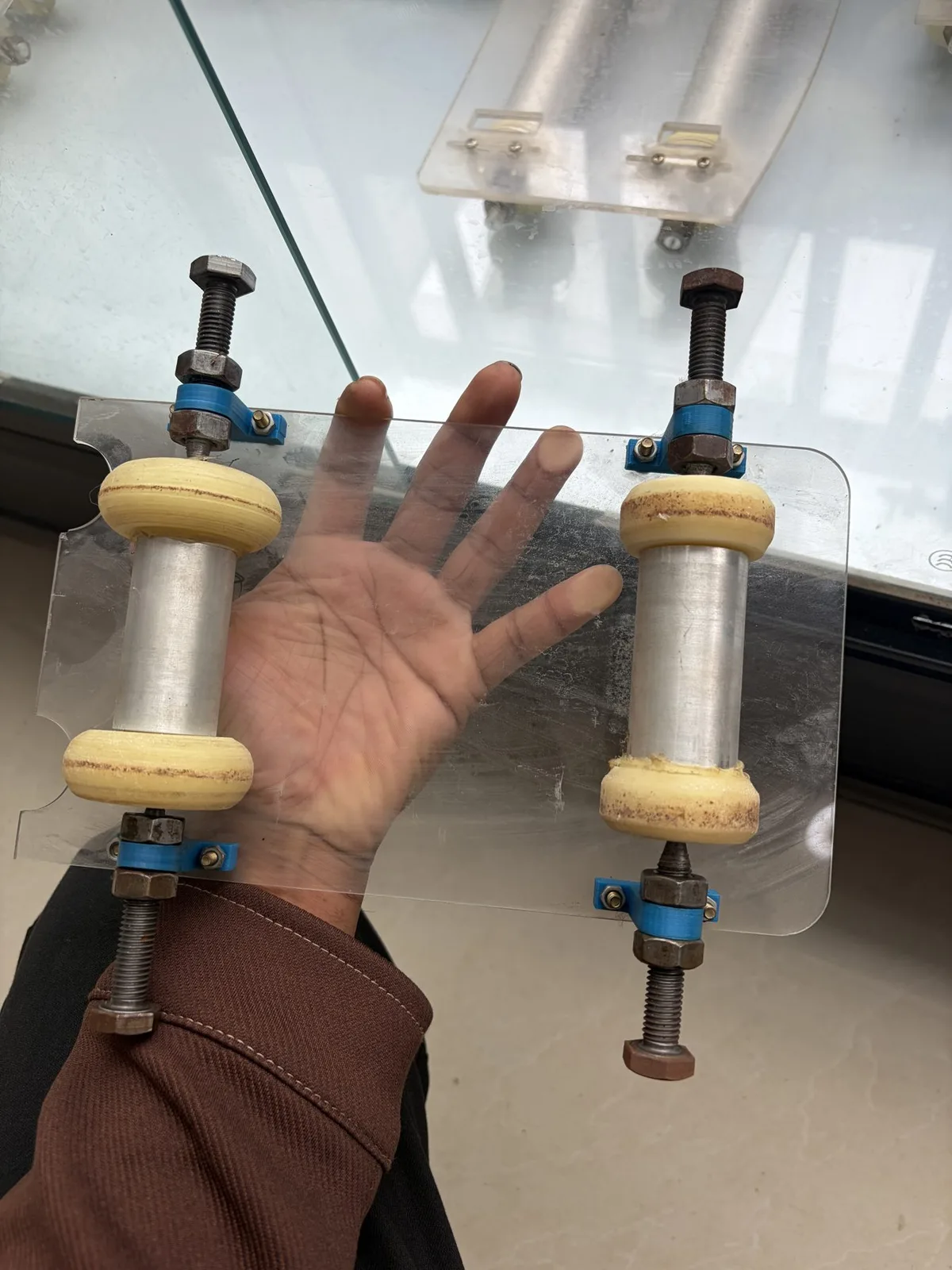

In hand palm

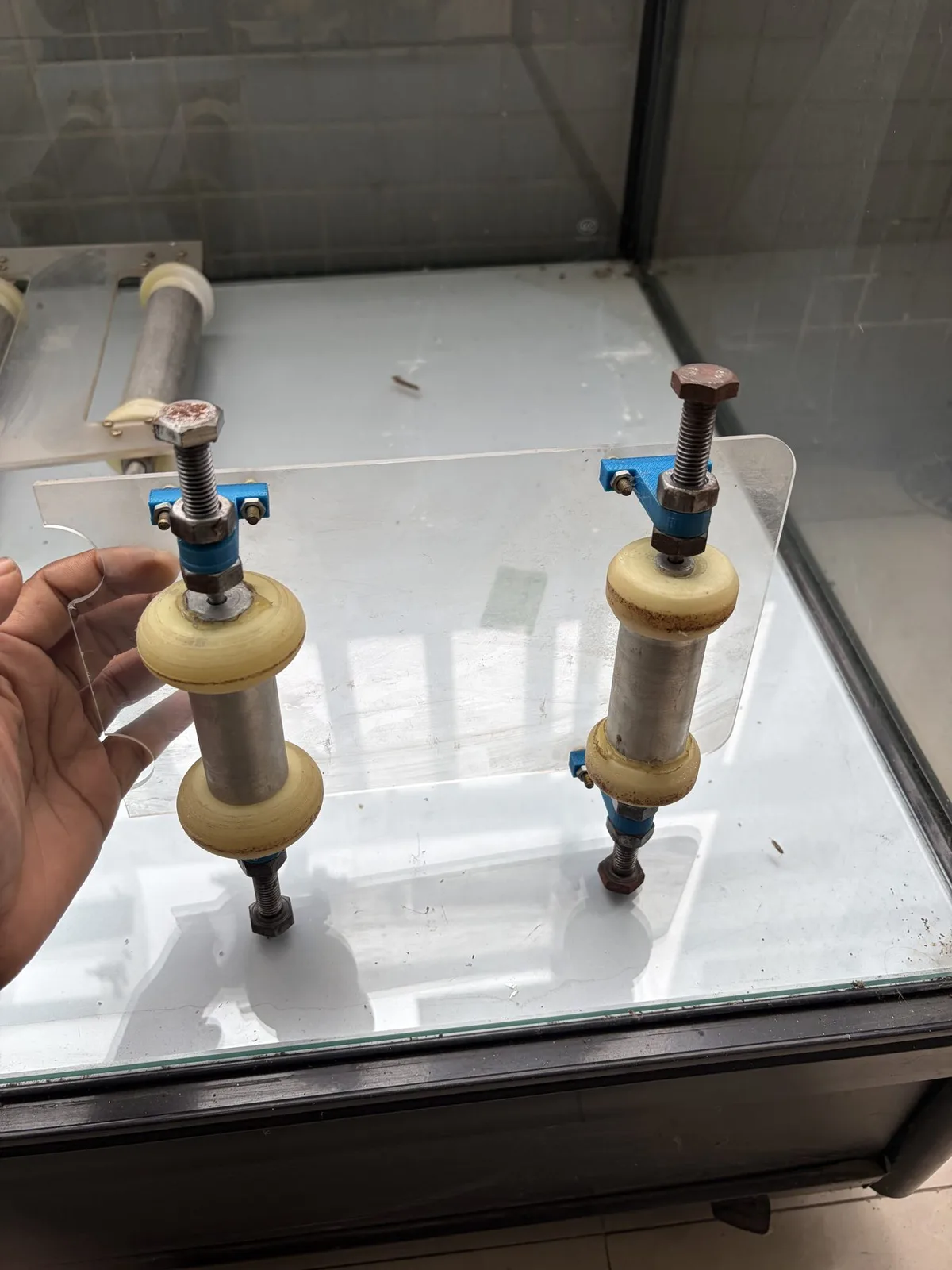

In hand side

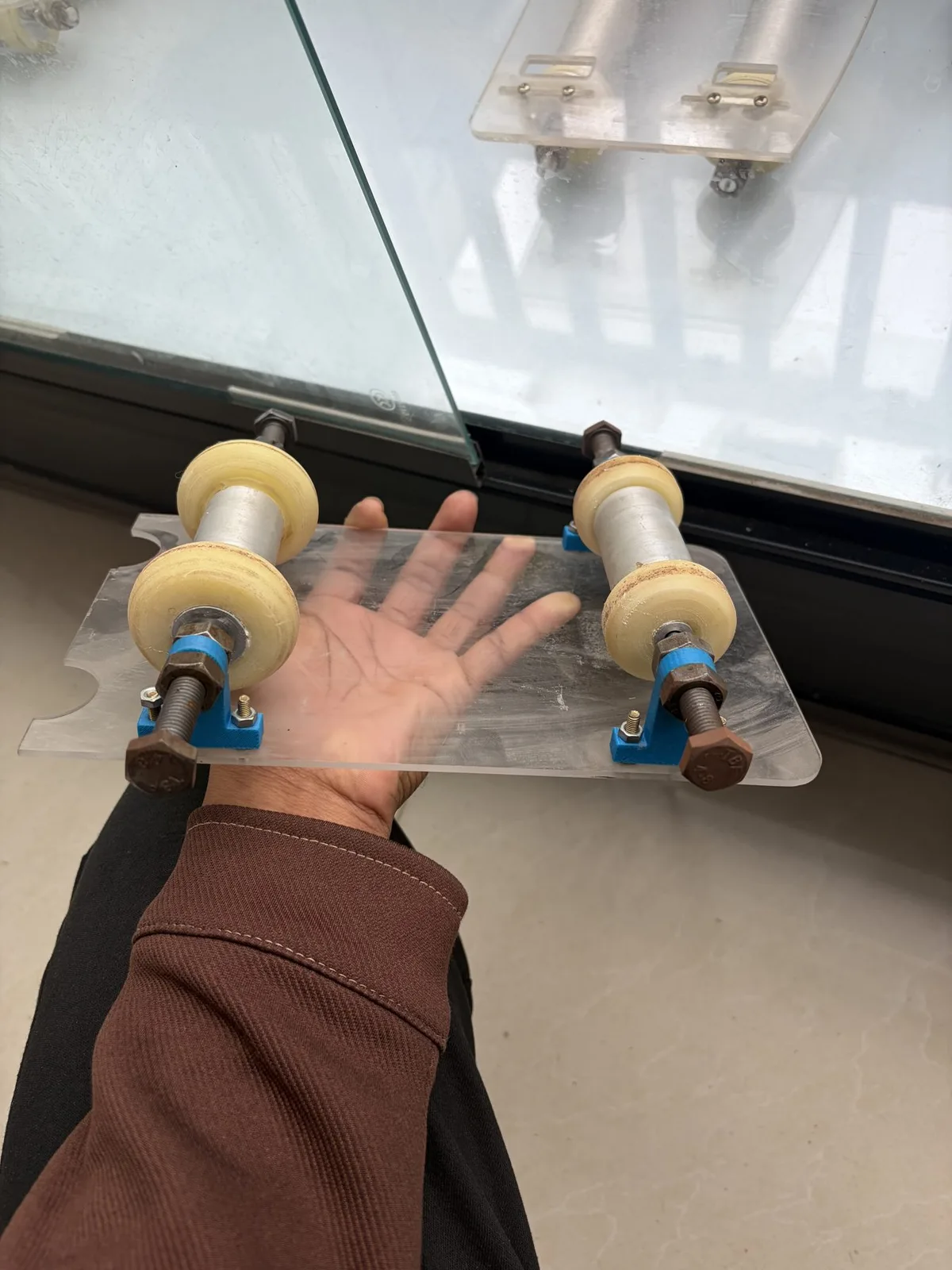

In hand wheel
